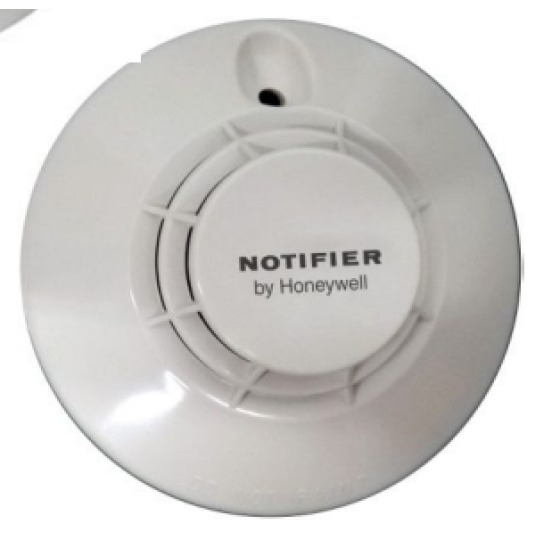

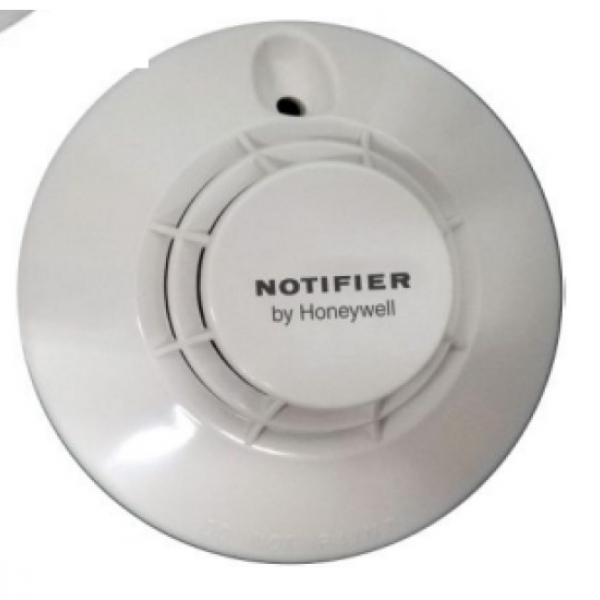

JTY-GD-FSP-951G Addressable Optical Smoke Detector

Price:

Contact

JTY-GD-FSP-951G is an intelligent photoelectric smoke detector monitoring location and smoke levels with adjustable sensitivity levels for diverse environments.

Contact for consultation

Product information
Documents/Download

Detailed Information

- New, streamlined design, attractive appearance

- Integrated metal protective casing, dustproof and insect-proof

- LED flashes during normal operation and turns red when a warning signal is received

- High noise immunity technology

- UL certified

Technical Specifications

- Operating voltage: 15 – 32 VDC

- Maximum current: 3mA (LED on) at 24VDC

- Average operating current: 380µA (LED flashing)

- Operating temperature: 0°C - 49°C

- Humidity: 10% - 93% RH

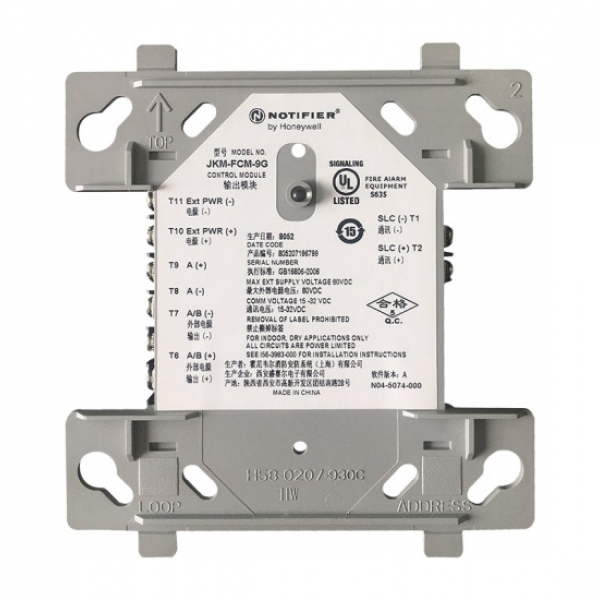

24V JKM-FCM-9G Control Module

UL-listed JKM-FCM-9G module controls fire bells and lights, featuring high anti-interference, stable signals, sleek design, and LED status indicators.

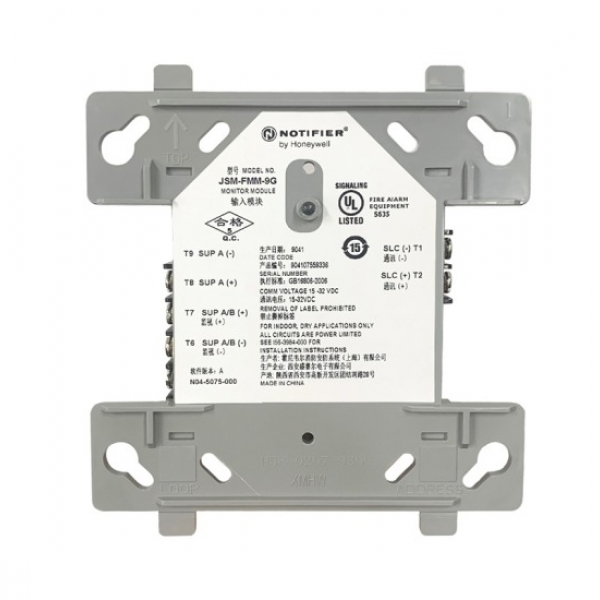

JSM-FMM-9G Monitoring Module

UL-listed JSM-FMM-9G module provides stable, anti-interference monitoring for peripheral devices, featuring a compact design and integrated status LED.

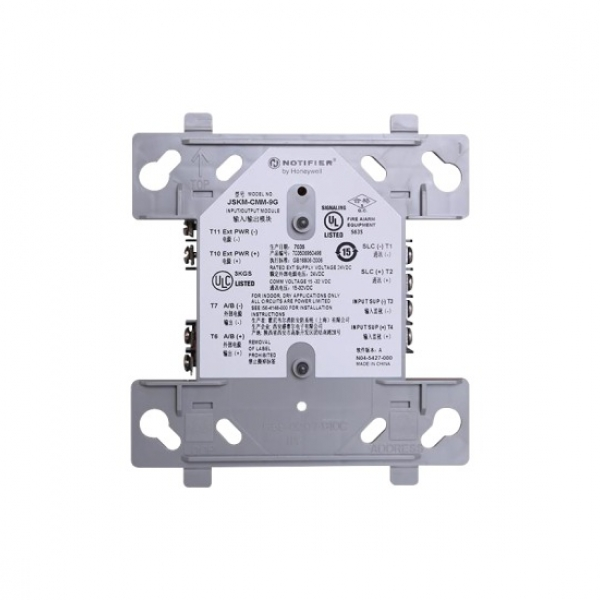

JSKM-CMM-9G Combined Monitoring and Control Module

UL-listed JSKM-CMM-9G module features independent input/output, high anti-interference, compact design, and LED status indicators for reliable peripheral control.

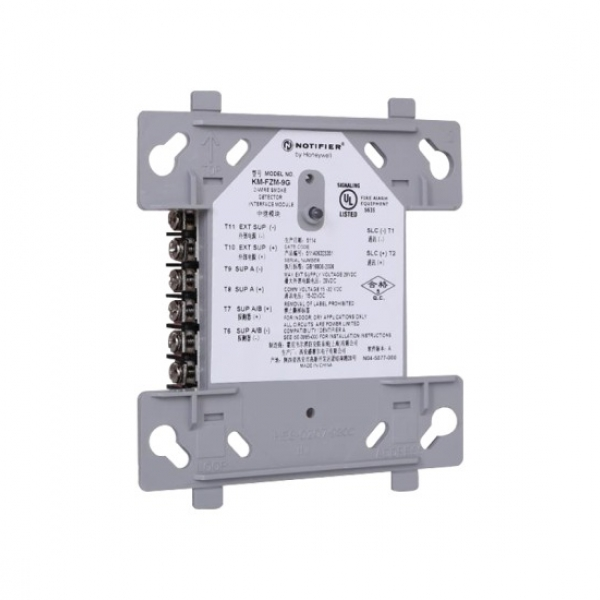

KM-FZM-9G Conventional Detector Monitoring Module

The KM-FZM-9G conventional detector connection module allows the connection of 2-wire conventional detectors to an addressable fire alarm system.

JTW-BD-FST-951G Addressable Heat Detector

UL-certified heat detector featuring fast-response thermistor, anti-interference technology, durable metal housing, and status LEDs in a sleek, insect-resistant design.
