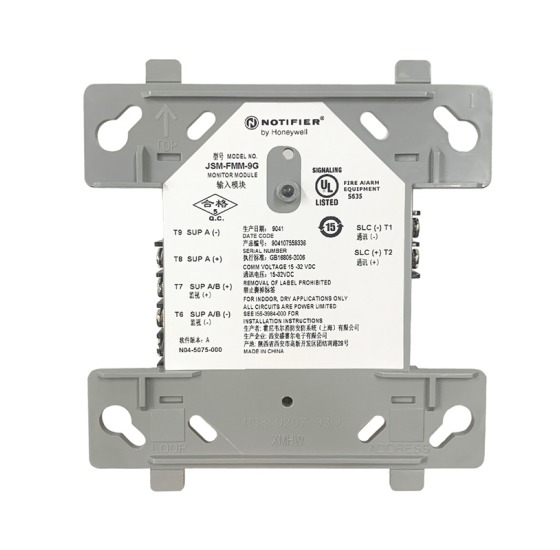

JSM-FMM-9G Monitoring Module

Price:

Contact

UL-listed JSM-FMM-9G module provides stable, anti-interference monitoring for peripheral devices, featuring a compact design and integrated status LED.

Contact for consultation

Product information
Documents/Download

Detailed Information

- Used to monitor devices such as: flow switches, valves, emergency push buttons (standard type), standard fire alarm panels, etc.

- LED indicator for module operating status

- Stable signal with high noise immunity

- Modern and compact design

- UL certified

Technical Specifications

- Operating voltage: 15 - 32 VDC

- Operating temperature: 0°C - 49°C

- End resistance: 47KΩ

- Humidity: 10% - 93% RH, non-condensing

- Standby current: 500μA at 24VDC (LED flashing)

- Alarm current: 3mA at 24VDC (LED on)
