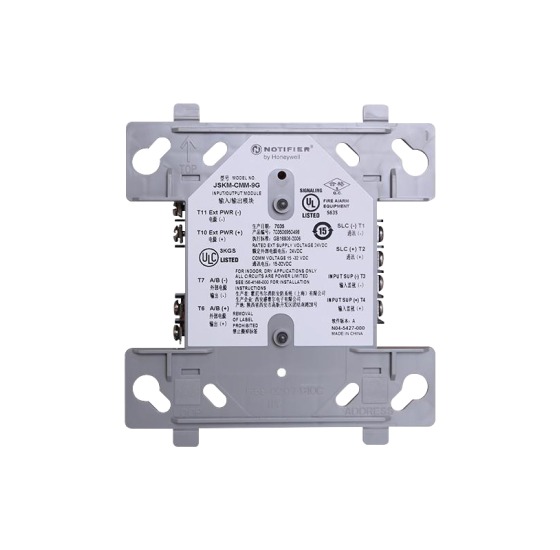

JSKM-CMM-9G Combined Monitoring and Control Module

Price:

Contact

UL-listed JSKM-CMM-9G module features independent input/output, high anti-interference, compact design, and LED status indicators for reliable peripheral control.

Contact for consultation

Product information
Documents/Download

Detailed Information

- Includes 1 monitoring input and 1 dry contact output; these two inputs/outputs operate completely independently. The dry contact output is used to control peripheral devices, and the monitoring input is used to monitor the status feedback of other devices.

- LED indicator for module operating status.

- Stable signal with high noise immunity.

- Modern, compact design.

- UL certified.

Technical Specifications

- Operating voltage: 15 - 32 VDC

- Operating temperature: 0°C - 49°C

- Humidity: 10% - 93% RH, non-condensing

- Standby current: 350μA at 24VDC (LED blinking)

- Relay contact current: 2A at 30 VDC and 0.5A at 125 VAC
