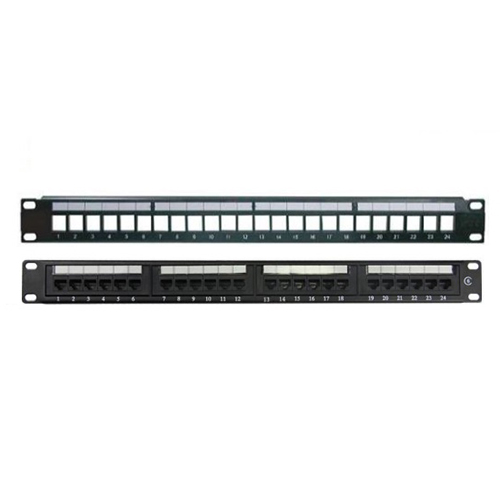

Benka Patch Panel Cat5E/Cat6

Giá:

Liên hệ

BENKA Cat6/Cat5e patch panels (24/48 ports) support Fast/Gigabit Ethernet, ATM, token ring, digital video, VoIP, PoE, TP-PMD and ISDN on standard 19'' frames.

Liên hệ tư vấn

Thông tin sản phẩm
Tài liệu/Download

General Specifications

Transmission standard	ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173-1
Total ports, quantity	24,48
Color	Black
Label	Write-on label, easy to identify
Package quantity	1
Packaging type	Box
Rack type	EIA 19 in rack unit

Mechanical Specifications

Panel style	Straight
Material type	High-impact, flame retardant, thermoplastic, steel
Panel mounting	Flush
Metal cable management	Optional
Termination type	IDC Wiring T568A \| T568B
Conductor termination range	22 AWG - 26 AWG
Conductor type	Solid or Stranded
Jack termination durability	> 750 times
IDC termination durability	> 250 times
Dust cover	Optional

Electrical Specifications

Contact resistance	20 MΩ
Current rating	1.5 Amps
DC resistance	Max. 0.1Ω
