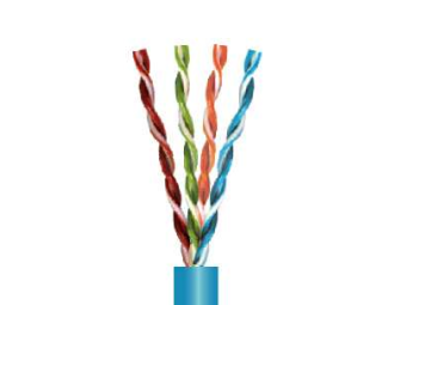

Benka F/UTP CAT.6A Cable 4x2x23AWG (3134223FC6A)
Our Category 6A F/UTP copper cable offers superior protection against pesky rodents. Ensure reliable, high-speed data transmission with this durable and dependable cable.
Specifications
| Conductor | Diameter (mm) | 0.57 ± 0.05 |
| Material | Bare copper | |
| Type | Solid | |
| Dielectric(insulation) | Diameter (mm) | 1.04 ± 0.05 |
| Material | Solid PE | |
| Screen | Material | PE separator + aluminium foil + tinned copper rain wire |
| Outer sheath | Color | Grey/Blue/Orange |
| Diameter (mm) | 7.6 ± 0.5 | |
| Material | PVC | |
| Color |
Pair 1: Blue, White/Blue Pair 2: Orange,White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown |
|
| Attenuation (100MHz dB/100m) | ≤ 19.8 | |
| NEXT (100MHz dB/100m) | ≥ 44.3 | |
| ELFEXT (100MHz dB/100m) | ≥ 27.8 | |
| RL (100MHz dB/100m) | ≥ 25 | |
| Impedance (Ω) | 100 | |
| Rated temperature | -20°C to ±75°C | |
| Smoke density | IEC 61034-2 (LSZH sheath) | |
| Halogen free | IEC 60754-1 (LSZH sheath) | |
| Flame retardant | UL 1685, IEC | |
| Standard & Approval | RoHS, SIRIM, ANSI, UL | |
Benka S/FTP CAT.6A Cable 4x2x23AWG (3134223SFC6A)
Boost your network's performance with our industrial Cat 6A S/FTP copper cable. This rugged cable is shielded for maximum data protection and transmission speeds.
Benka U/UTP CAT.6A Cable 4x2x23AWG (6214223C6A)
Maximize network performance in harsh environments with Benka's industrial Cat6A cable. Built for factories and other demanding locations, it handles wear and tear with its LSZH jacket.
Benka F/UTP CAT.6 Cable 4x2x23AWG (6214223FC6)
Use our Cat 6 F/UTP copper cable for reliable high-speed data transmission in harsh environments, perfect for long-distance data transfer in factories and other demanding locations.
Benka U/UTP CAT.6 Cable 4x2x23AWG (6214223C6)
Our Cat 6 U/UTP copper cable is designed to deliver superior data transmission in demanding environments. It offers superior performance and a rugged construction to ensure reliable data transmission.

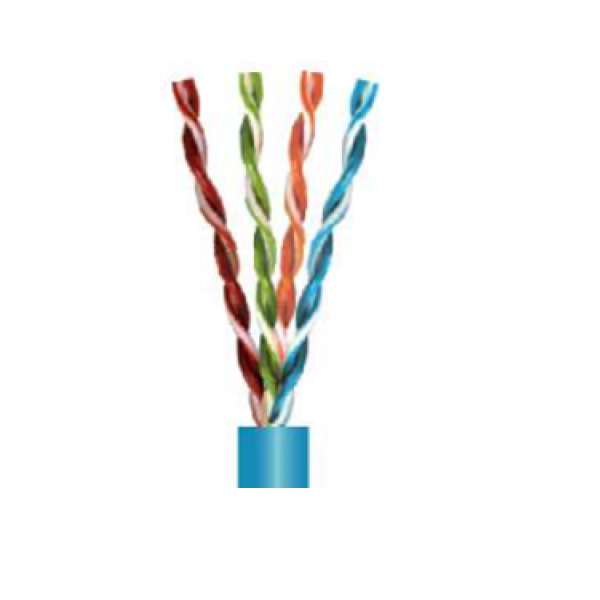

Benka U/UTP CAT.6 Cable 4x2x23AWG (3134223C6)
Our Cat 6 U/UTP copper cable is designed to deliver superior data transmission in demanding environments. It offers superior performance and a rugged construction to ensure reliable data transmission.
Benka U/UTP CAT.6 Cable 4x2x24AWG Outdoor (3554224C6)
Our Cat 6 U/UTP copper cable is designed to deliver superior data transmission in demanding environments. It offers superior performance and a rugged construction to ensure reliable data transmission.
Benka U/UTP CAT.6 Cable 4x2x24AWG (6214224C6)
Our Cat 6 U/UTP copper cable is designed to deliver superior data transmission in demanding environments. It offers superior performance and a rugged construction to ensure reliable data transmission.
Benka U/UTP CAT.6 Cable 4x2x24AWG (3134224C6)
Our Cat 6 U/UTP copper cable is designed to deliver superior data transmission in demanding environments. It offers superior performance and a rugged construction to ensure reliable data transmission.
Benka F/UTP CAT.5E Cable 4x2x24AWG (3134224FC5E)
Our industrial-grade Cat 5e F/UTP copper cable is flame-retardant, oil-resistant, and sunlight-resistant, making it perfect for connecting devices in factories or other demanding locations.
Benka U/UTP CAT.5E Cable 4x2x24AWG (6214224C5E)
Built to withstand harsh conditions, our Cat 5e solid copper UTP cable delivers reliable, high-speed data transmission for demanding industrial applications.
Benka U/UTP CAT.5E Cable 4x2x24AWG (3134224C5E)
Built to withstand harsh conditions, our Cat 5e solid copper UTP cable delivers reliable, high-speed data transmission for demanding industrial applications.
