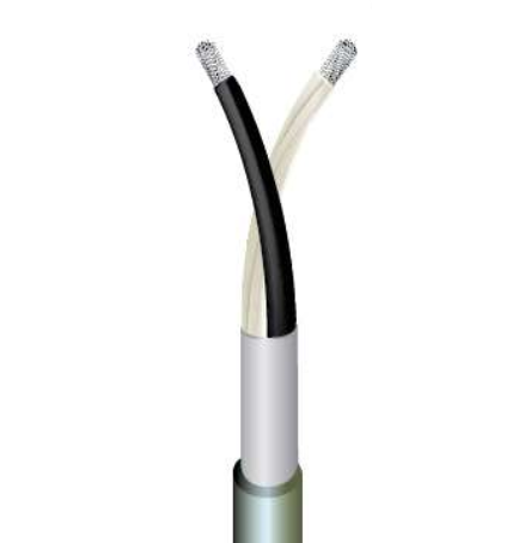

Benka Double Shielded Data Cable (177 DS)
Giá:
Liên hệ
This cable supports security, audio, BMS, RS232/RS485 and fire alarm systems, usable in dry or humid areas, with twisted pairs and full foil shielding for interference reduction.
Construction
| Conductor | Flexible class 5 stranded tinned copper conductor |
| Insulation | Polyethylene (PE) compound, twisted in pair |
| Overall screen | Aluminium foil and tinned copper braid |
| Drain wire | Tinned copper drain wire |
| Outer sheath | PVC/LSZH. Color: Grey/Orange |
Technical Data
| Working voltage | 300/500V |
| Test voltage | 1500V |
| Rated temperature | -20°C to +70°C |
| Conductor resistance(max) (Ω/km) | 18 AWG: 23.6; 20 AWG: 34.4; 22 AWG: 55.4; 24 AWG: 85.7 |
| Insulation resistance | > 2 GΩ x km |
| Impedance | 120 Ω |
| Max recommended current @ 25°C (Amps) | 18 AWG: 7.2; 20 AWG: 4.9; 22 AWG: 2.9; 24 AWG: 2.1 |
| Smoke density | IEC 61034-2 (LSZH sheath) |
| Halogen free | IEC 60754-1 (LSZH sheath) |
| Flame retardant | IEC 60332-1 |
| Standard & Approval | RoHS, SIRIM, UL |
| UL standard | UL2092, UL2919... |
| Minimum bending radius | 8 x OD (static) |
